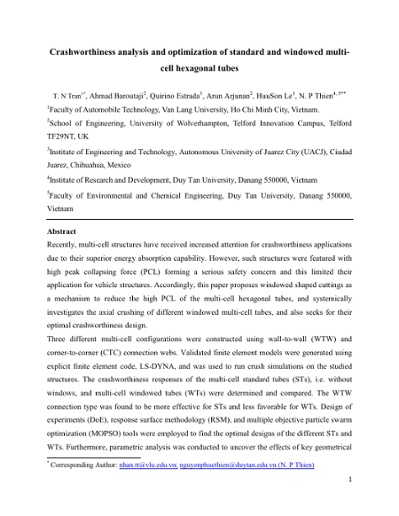

Crashworthiness analysis and optimization of standard and windowed multi-cell hexagonal tubes
Tran, TN Baroutaji, Ahmad Estrada, Quirino Arjunan, Arun Le, HuuSon Thien, NP
Tran, TN
Baroutaji, Ahmad
Estrada, Quirino
Arjunan, Arun
Le, HuuSon
Thien, NP
Editors
Other contributors
Affiliation
Epub Date
Issue Date
2021-01-07
Submitted date
Alternative
Abstract
Recently, multi-cell structures have received increased attention for crashworthiness applications due to their superior energy absorption capability. However, such structures were featured with high peak collapsing force (PCL) forming a serious safety concern, and this limited their application for vehicle structures. Accordingly, this paper proposes windowed shaped cuttings as a mechanism to reduce the high PCL of the multi-cell hexagonal tubes and systemically investigates the axial crushing of different windowed multi-cell tubes and also seeks for their optimal crashworthiness design. Three different multi-cell configurations were constructed using wall-to-wall (WTW) and corner-to-corner (CTC) connection webs. Validated finite element models were generated using explicit finite element code, LS-DYNA, and were used to run crush simulations on the studied structures. The crashworthiness responses of the multi-cell standard tubes (STs), i.e., without windows, and multi-cell windowed tubes (WTs) were determined and compared. The WTW connection type was found to be more effective for STs and less favorable for WTs. Design of experiments (DoE), response surface methodology (RSM), and multiple objective particle swarm optimization (MOPSO) tools were employed to find the optimal designs of the different STs and WTs. Furthermore, parametric analysis was conducted to uncover the effects of key geometrical parameters on the main crashworthiness responses of all studied structures. The windowed cuttings were found to be able to slightly reduce the PCL of the multi-cell tubes, but this reduction was associated with a major negative implication on their energy absorption capability. This work provides useful insights on designing effective multi-cell structures suitable for vehicle crashworthiness applications.
Citation
Tran, T.N., Baroutaji, A., Estrada, Q. et al. (2021) Crashworthiness analysis and optimization of standard and windowed multi-cell hexagonal tubes. Structural and Multidisciplinary Optimization, 63, pp. 2191–2209. https://doi.org/10.1007/s00158-020-02794-y
Publisher
Research Unit
PubMed ID
PubMed Central ID
Embedded videos
Additional Links
Type
Journal article
Language
en
Description
This is an accepted manuscript of an article published by Springer in Structural and Multidisciplinary Optimization on 07/01/2021, available online: https://doi.org/10.1007/s00158-020-02794-y
The accepted version of the publication may differ from the final published version.
Series/Report no.
ISSN
1615-147X
EISSN
1615-1488
ISBN
ISMN
Gov't Doc #
Sponsors
This research is funded by the Vietnam National Foundation for Science and Technology Development (NAFOSTED) under grant number 107.99-2019.02.
